Under dash underdash ac air conditioner evaporator unit assembly box boxes for Mercedes Benz Heavy trucks
- Model
- INTL-EU020
Item specifics
- Size
- 77*34*74CM
- Type
- evaporator unit
- Car Make
- for Mercedes Benz Heavy trucks
- OE NO.
- INTL-EU020
- QUALITY
- GRADE ONE
Review
Description
We promise to offer you A grade quality product and one year quality warrantee.
Any questions, please feel free to contact with me. (∩_∩)

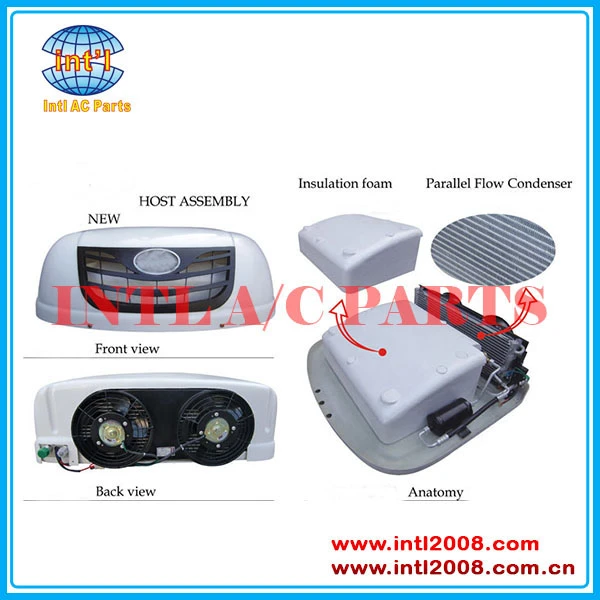

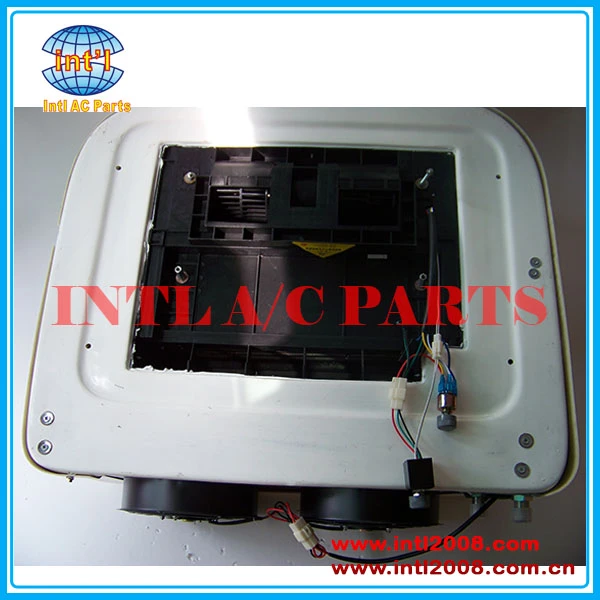

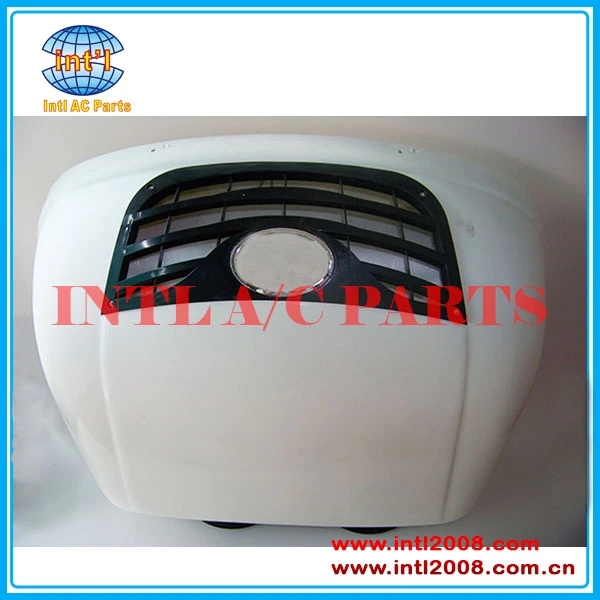

EVAPORATOR UNIT ASSEMBLY for Mercedes Benz Heavy trucks Series
Specification:
Model number: INTL-EU020
Application for: Mercedes Benz Heavy trucks Series
Top Size: 725(L) X 710(W) X 230(H)

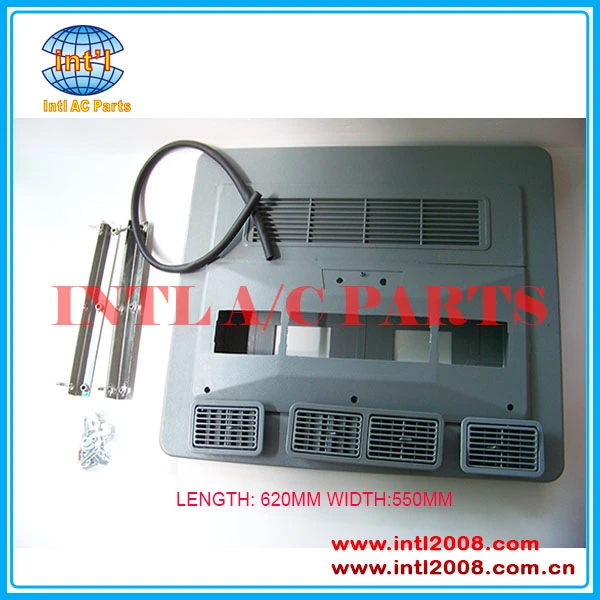

Window Outlet Size: 620(L) X 550(W)
Safe Install: Pressure Switch
Window Outlet Size: 620(L) X 550(W)
Safe Install: Pressure Switch
WHOLE UNIT ASSEMBLY : 280W
evaporator blower Voltage: 24VDC
evaporator blower Voltage: 24VDC
Speed: 4100 r/min
cooling fan voltage: 24VDC
cooling fan voltage: 24VDC
Working Speed: 2300r/min X 2
Evaporator Coil structure: Aluminum Pipe(Serpentine) Core Size :460(L)X 105(W)X 120(H)
Evaporator Coil structure: Aluminum Pipe(Serpentine) Core Size :460(L)X 105(W)X 120(H)
this evaporator assembly include: evaporator core,condenser,fan motor,expansion valve,receiver drier bottle,
but not include compressor.
Function: single cold.
Refrigeration:3700-4500KCAL/h
expansion valve capacity:1.4TON
Condenser Structure: Cooper Pipe(Serpentine) Size:660(L)X 153(W)X 80(H)
PACKAGE:
weight: 26KG
CARTON SIZE:77*34*74CM
