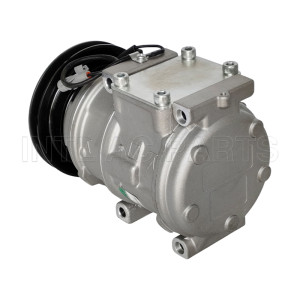

ac compressor 10PA20H 6GR 5.06 in 93-97 LEXUS GS300 447200-0112 447200-6129 Toyota Crown 3.0 90>95

Our factory can produce many kinds of auto Air Conditioner Compressor with good quality and one year quality warrantee.

447200-0112

447200-6129

Toyota Crown 3.0 90>95

Specification:

Model number: INTL-XZC196

Car name: Toyota Crown 90>95 Lexus GS300 1993-1997

Compressor type: 10PA20H

Clutch DIA: 133mm

Year Model: 1993-1997

Grooves: PV6

Voltage: 12V

Oil Type PAG 46
Oil Capacity Oz 7
Omega Oil No 41-50102

Special Notes:

OEM:

447200-0112

447200-6129

4472000112

4472006129

Details

1993-1997 LEXUS GS300 L6 3.0L 2997cc

1993 Lexus GS300

1994 Lexus GS300

1995 Lexus GS300

1996 Lexus GS300

1997 Lexus GS300

1990-1995 Toyota Crown 3.0

1990 Toyota Crown

1991 Toyota Crown

1992 Toyota Crown

1993 Toyota Crown

1994 Toyota Crown

1995 Toyota Crown

95" ori-width="800" ori-height="631" />95" ori-width="800" ori-height="627" />95" ori-width="800" ori-height="711" />

Basic Requirements when servicing an A/C system:

1, The Accumulator or Filter Drier should always be replaced when the Air Conditioning System is opened. For warranty Purposes buyer must show evidence of receiver/drier replacement. In some vehicles the drier comes attached to the condenser so it must replaced as well

2. A/C system must be clean and free of debris and contaminants. In most cases components can be flushed; however in some instances it may be necessary to replace the condenser or other items.

3. Orifice tube must be replaced; expansion valve must be inspected and replaced if dirty or defective.

4. Correct amount and type of oil must be used. Please refer to the OE manufacturer for this information.

5. Prior to refrigerant charging, full vacuum must be done for a minimum of 45 minutes. In humid climates or during cooler days, this time should be increased to effectively remove air and boil off moisture.

6. The Orifice Tube, if equipped, should always be replaced and the Expansion Valve, if equipped, should at least be inspected for proper operation if not replaced
