Download the PDF Document at hereINTL-XZC021A

Our factory can produce many kinds of auto Air Conditioner Compressors with good quality and one year quality warrantee.

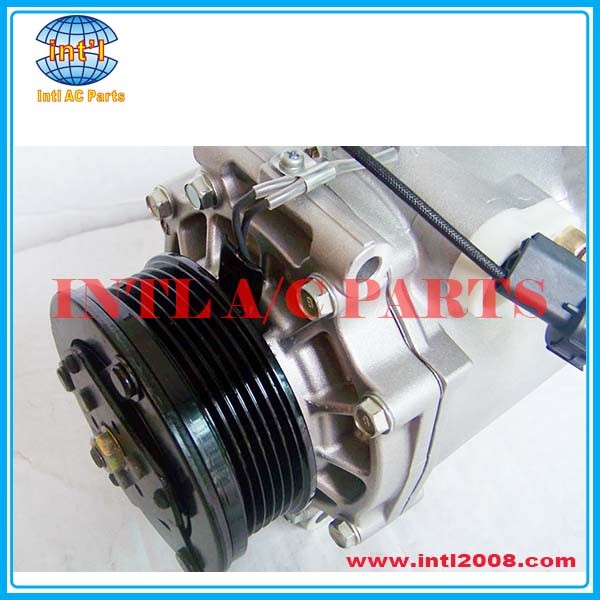

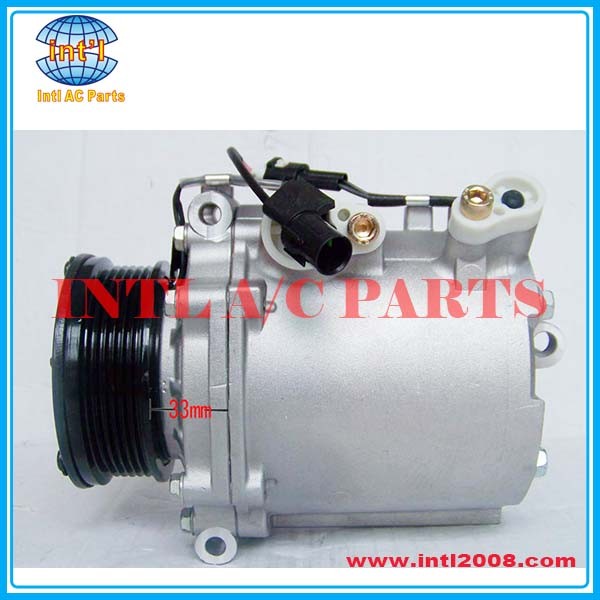

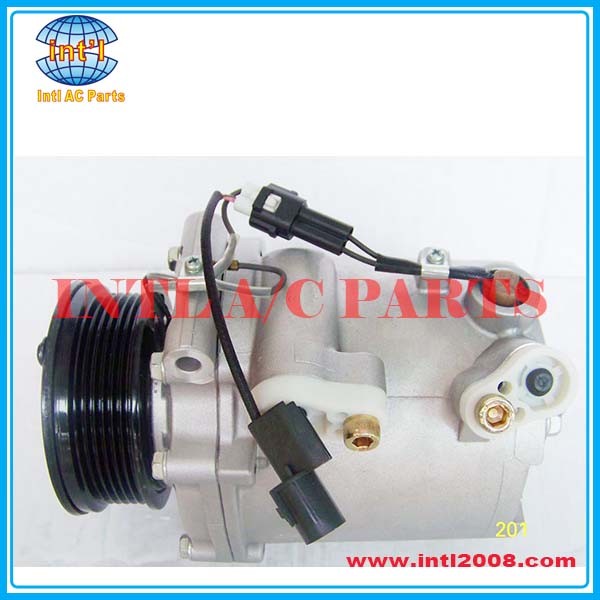

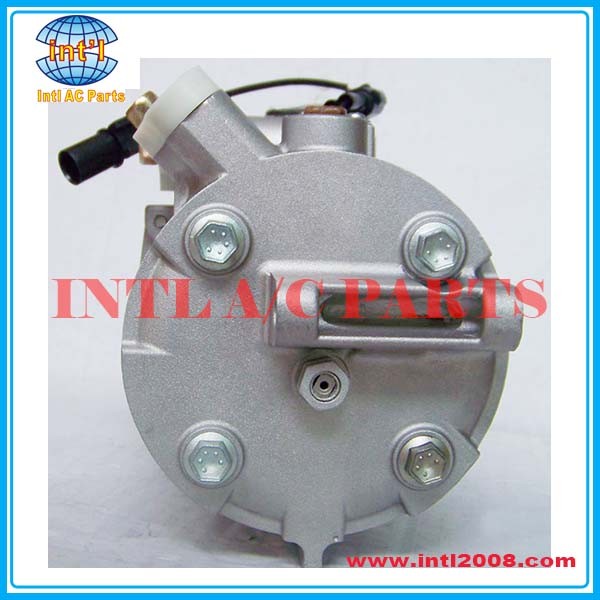

MSC90CAS Mitsubishi Outlander Lancer 2005-2010

Specification:

Model number: INTL-XZC021A

Car name: Mitsubishi / Outlander/ Lancer

Compressor Type: MSC90CAS

Grooves: PV6

Voltage: 12V

Special Notes:

OEM:

MMC7813A323

MMC7813A070

AKC200A221F

7813A323

7813A070

Details

2005-2010 Mitsubishi Outlander

2005 Mitsubishi Outlander

2006 Mitsubishi Outlander

2007 Mitsubishi Outlander

2008 Mitsubishi Outlander

2009 Mitsubishi Outlander

2010 Mitsubishi Outlander

Basic Requirements when servicing an A/C system:

1, The Accumulator or Filter Drier should always be replaced when the Air Conditioning System is opened. For warranty Purposes buyer must show evidence of receiver/drier replacement. In some vehicles the drier comes attached to the condenser so it must replaced as well

2. A/C system must be clean and free of debris and contaminants. In most cases components can be flushed; however in some instances it may be necessary to replace the condenser or other items.

3. Orifice tube must be replaced; expansion valve must be inspected and replaced if dirty or defective.

4. Correct amount and type of oil must be used. Please refer to the OE manufacturer for this information.

5. Prior to refrigerant charging, full vacuum must be done for a minimum of 45 minutes. In humid climates or during cooler days, this time should be increased to effectively remove air and boil off moisture.

6. The Orifice Tube, if equipped, should always be replaced and the Expansion Valve, if equipped, should at least be inspected for proper operation if not replaced
