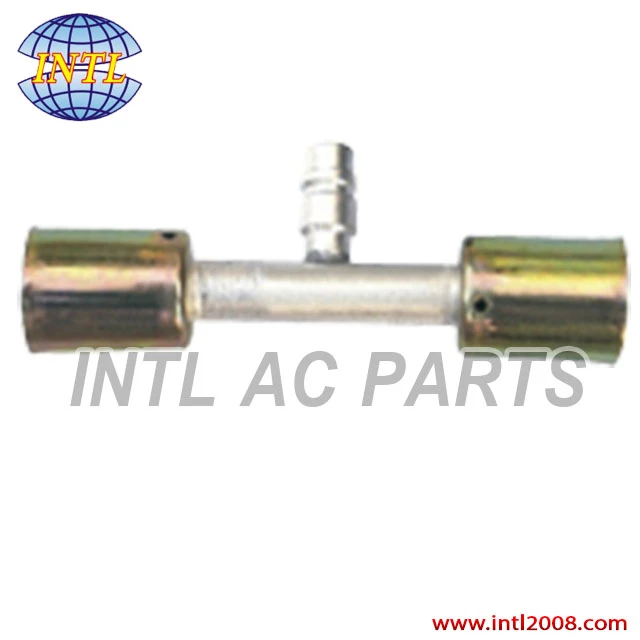

auto air conditioning hose fitting AC beadlock fitting crimp on fitting hose splice with R12 service port
auto air conditioning hose fitting AC beadlock fitting crimp on fitting hose splice with R12 service port
auto air conditioning hose fitting AC beadlock fitting crimp on fitting hose splice with R12 service port
Model
INTL-HF6302-A

Item specifics

Material
Aluminum
Type
Coupling
Item Type
Air-conditioning Installation
Item Length
15 cm
Item Width
10 cm
Material Type
aluminum
size
#8
car make
universal

Review

Description

PRODUCT PROFILE

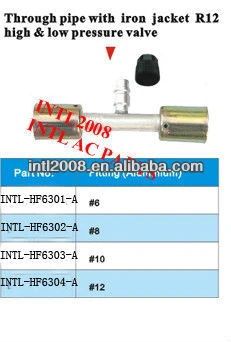

 auto air conditioning hose fitting AC beadlock fitting crimp on fitting hose splice with R12 service port Specifications



Item Type :Air-conditioning Installation

Material Type: aluminum

Car Make: universa

OE NO.: universal
warrant: 1 year
size: #8

model number:INTL-HF6302-A





Note: we can manufacture according to our customer's dimension

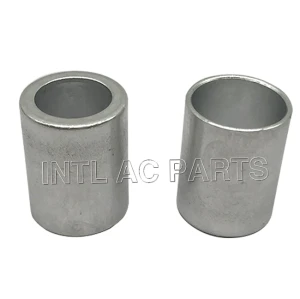

Jacket A

Type

Rear Bore Diameter (MM)

Inner Bore Diameter(MM)

A1:#6-5/16

8.2±0.3

15.2±0.4

A2:#8-13/32

11.4±0.4

18.4±0.4

A3:#10-1/2

13±0.4

21±0.5

A4:#12-5/8

15.2±0.4

23±0.5

Jacket B

Type

Rear Bore Diameter (MM)

Inner Bore Diameter(MM)

B1:#6-5/16

8.2±0.4

19±0.5

B2:#8-13/32

10.5±0.4

23±0.5

B3:#10-1/2A

13±0.5

23±0.8

B4:#10-1/2B

13±0.5

25.4±0.8

B5:#12-5/8

16.1±0.5

28.6±0.8































auto air conditioning hose fitting AC beadlock fitting crimp on fitting hose splice with R12 service port
