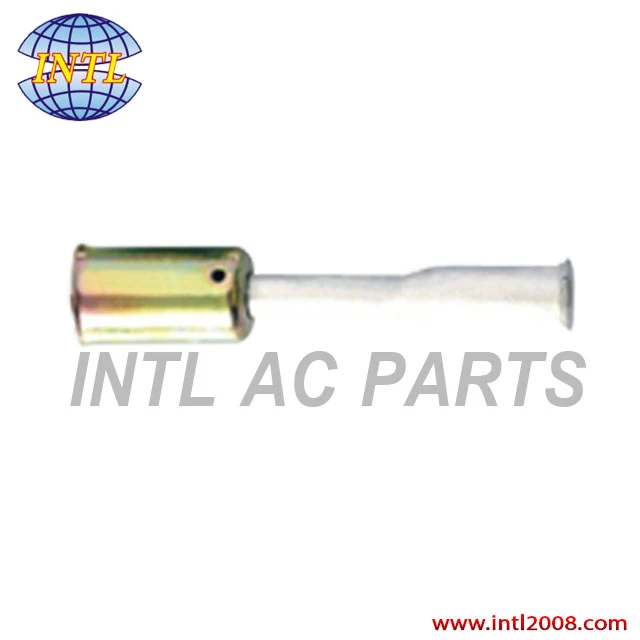

#6 straight flare quick joint /connector/coupling with iron jacket cap for wholesale and retail
- Model
- intl-hf2128
Item specifics
- Item Type
- Air-conditioning Installation
- Quality
- high
- condition
- toally new
- place of orign
- china guangdong
Review
Description
Specifications
Car Make: universal
OE NO.: universal
warrant: 1 year
size :#6 straight
model number:intl-hf2128
place of Origin: Guangdong, China (Mainland)
Brand Name: INTL
Condition: totally new
Quality: high
Certification: ISO 9001;CE;GC
Warranty :one year
Note: we can accord our customer dimension to manufacture
Jacket A | ||
Type | Rear Bore Diameter (MM) | Inner Bore Diameter(MM) |
A1:#6-5/16 | 8.2±0.3 | 15.2±0.4 |
A2:#8-13/32 | 11.4±0.4 | 18.4±0.4 |
A3:#10-1/2 | 13±0.4 | 21±0.5 |
A4:#12-5/8 | 15.2±0.4 | 23±0.5 |
Jacket B | ||
Type | Rear Bore Diameter (MM) | Inner Bore Diameter(MM) |
B1:#6-5/16 | 8.2±0.4 | 19±0.5 |
B2:#8-13/32 | 0.5±0.4 | 23±0.5 |
B3:#10-1/2A | 13±0.5 | 23±0.8 |
B4:#10-1/2B | 13±0.5 | 25.4±0.8 |
B5:#12-5/8 | 16.1±0.5 | 28.6±0.8 |
