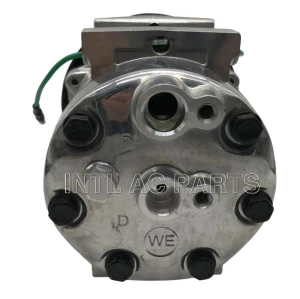

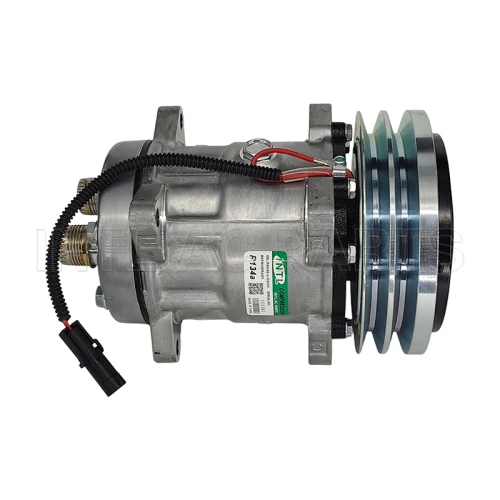

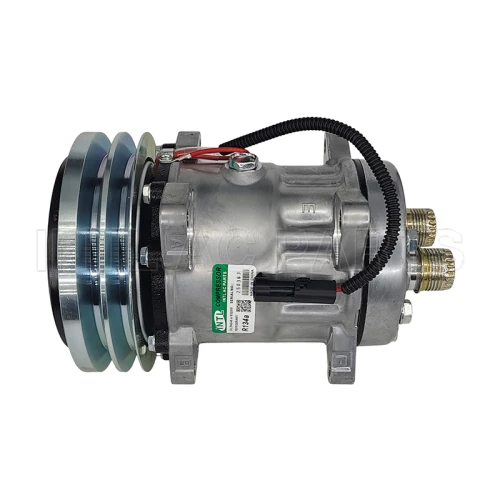

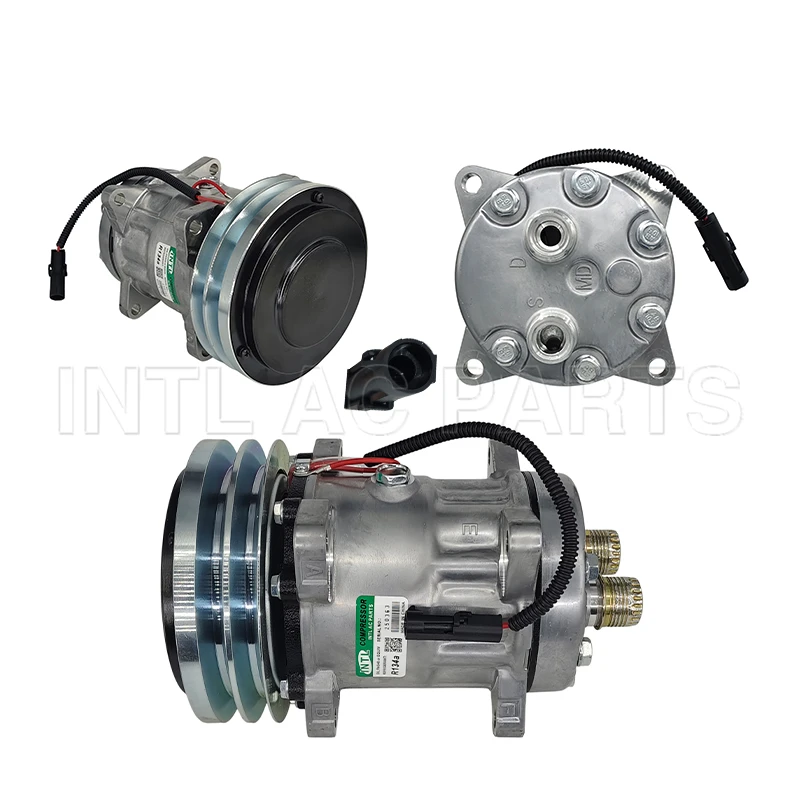

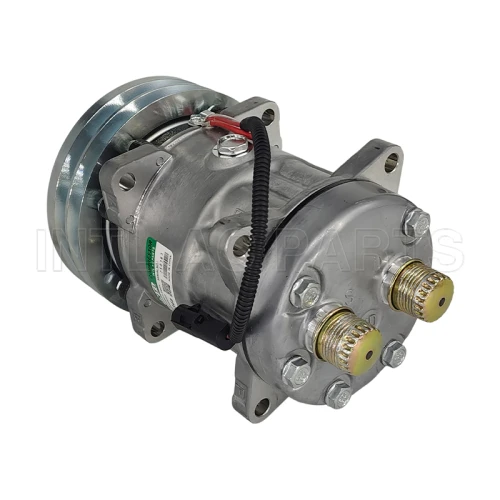

SD7H15 Auto Ac Compressor Case New Holland Sanden 4609 1999755C3 RC.600.175
SD7H15 Auto Ac Compressor  Case New Holland Sanden 4609 1999755C3 RC.600.175
SD7H15 Auto Ac Compressor  Case New Holland Sanden 4609 1999755C3 RC.600.175
SD7H15 Auto Ac Compressor  Case New Holland Sanden 4609 1999755C3 RC.600.175
SD7H15 Auto Ac Compressor  Case New Holland Sanden 4609 1999755C3 RC.600.175
SD7H15 Auto Ac Compressor  Case New Holland Sanden 4609 1999755C3 RC.600.175
Model
INTL-C137

Item specifics

Size
PACKING : 25*22*19
Car Make
SANDEN 7H15 for Case/New Holland/MC/Cormick/Steyr
OE NO.
197121A1 1999755C3 1999755C2 1977959C1 47050714 1990755C3 4478SAN 4609
QUALITY
GRADE ONE
type
SANDEN 7H15

Review

Description

SANDEN 7H15 for Case/New Holland/MC/Cormick/Steyr 2pk kompressor


Specification:

Model number: INTL-C137

Car name: for Case/New Holland/MC/Cormick/Steyr

Compressor Type: SANDEN 7H15

Clutch DIA: 152mm

Pulley:2PK

Volt: 12V


OEM#

197121A1

RC.600.175

1999755C3

1999755C2

1977959C1

47050714

1990755C3

4478SAN

Sanden:

4609

U4609

4478

AA7H15AA

U4609

Maq/uina Case / New Holland TC5070

TC5070

Car application

for Case Combine: 1644, 1666, 1688, 1800, 1822, 1844, 2022, 2044, 2055, 2144, 2155, 2166, 2188, 2344, 2366, 2377, 2388, 2555, 2577, 2588, 5088, 6088, 7088
for Case Crawler: 650H Crawler, 650K Crawler, 750K Crawler, 850H Crawler, 850K Crawler, 1150G Crawler, 1150H Crawler
for Case Loader: 570LX2 Loader, 570MXT Loader




Packaging Detail


0002307011 0002302011 DENSO 7SB16C ac compressor for Benz MB Sprinter GM ZAFIRA Chrysler Crossfire Dodge Sprinter Van


Shipping Detail


0002307011 0002302011 DENSO 7SB16C ac compressor for Benz MB Sprinter GM ZAFIRA Chrysler Crossfire Dodge Sprinter Van


Our Factory


0002307011 0002302011 DENSO 7SB16C ac compressor for Benz MB Sprinter GM ZAFIRA Chrysler Crossfire Dodge Sprinter Van


Basic Requirements when servicing an A/C system:

1, The Accumulator or Filter Drier should always be replaced when the Air Conditioning System is opened. For warranty Purposes buyer must show evidence of receiver/drier replacement. In some vehicles the drier comes attached to the condenser so it must replaced as well

2. A/C system must be clean and free of debris and contaminants. In most cases components can be flushed; however in some instances it may be necessary to replace the condenser or other items.

3. Orifice tube must be replaced; expansion valve must be inspected and replaced if dirty or defective.

4. Correct amount and type of oil must be used. Please refer to the OE manufacturer for this information.

5. Prior to refrigerant charging, full vacuum must be done for a minimum of 45 minutes. In humid climates or during cooler days, this time should be increased to effectively remove air and boil off moisture.

6. The Orifice Tube, if equipped, should always be replaced and the Expansion Valve, if equipped, should at least be inspected for proper operation if not replaced
