Air conditioning a/c Expansion Valve Mercedes-Benz W124 MB
- Model
- INTL-EH065
Item specifics
- Size
- 15*10*10CM
- Type
- Expansive valve
- Car Make
- Mercedes-Benz W124
- condition
- brand new
- quality
- OEM A quality
- Vehicle
- Mercedes-Benz MB
- good name
- expansion valve (H) for Benz W124
- selling mode
- Retail, Wholesales
- shipment
- sea /by DHL/Air
- Markets
- Europe, America, South America, Southeast Asia,etc
Review
Description

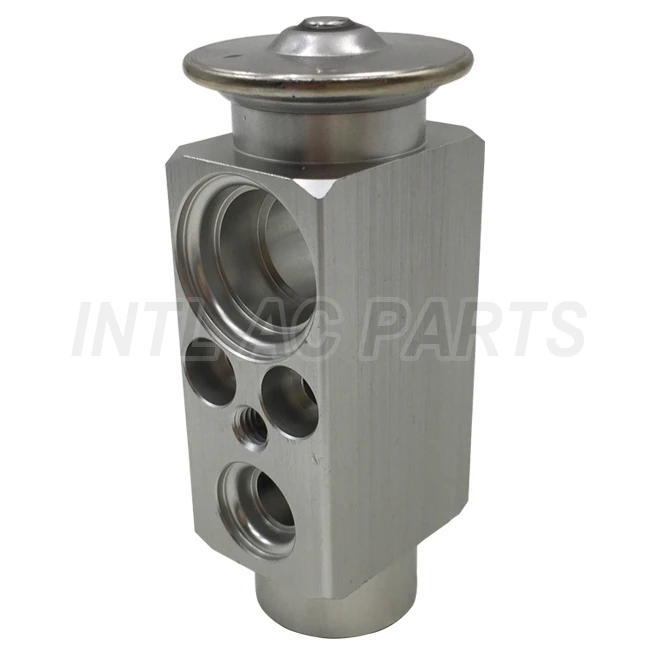

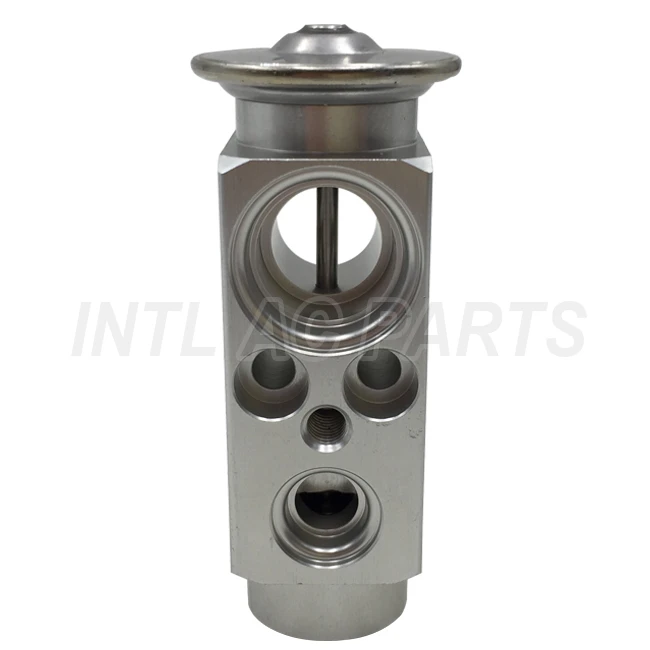

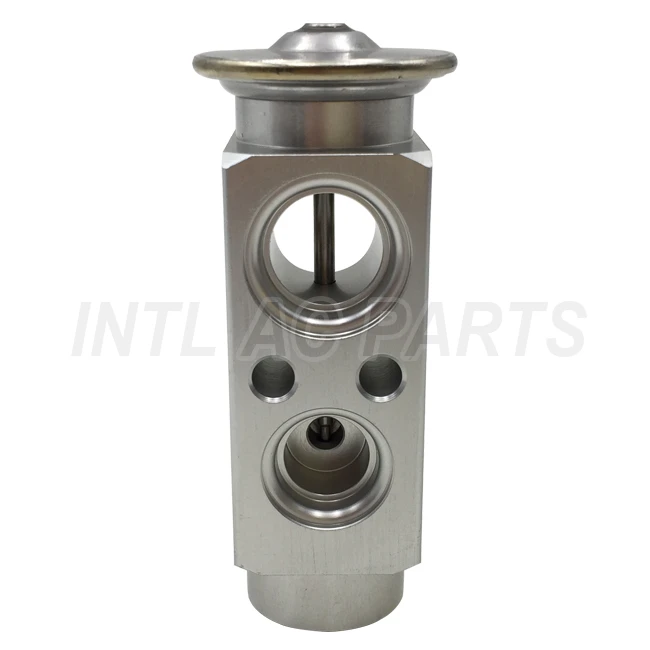

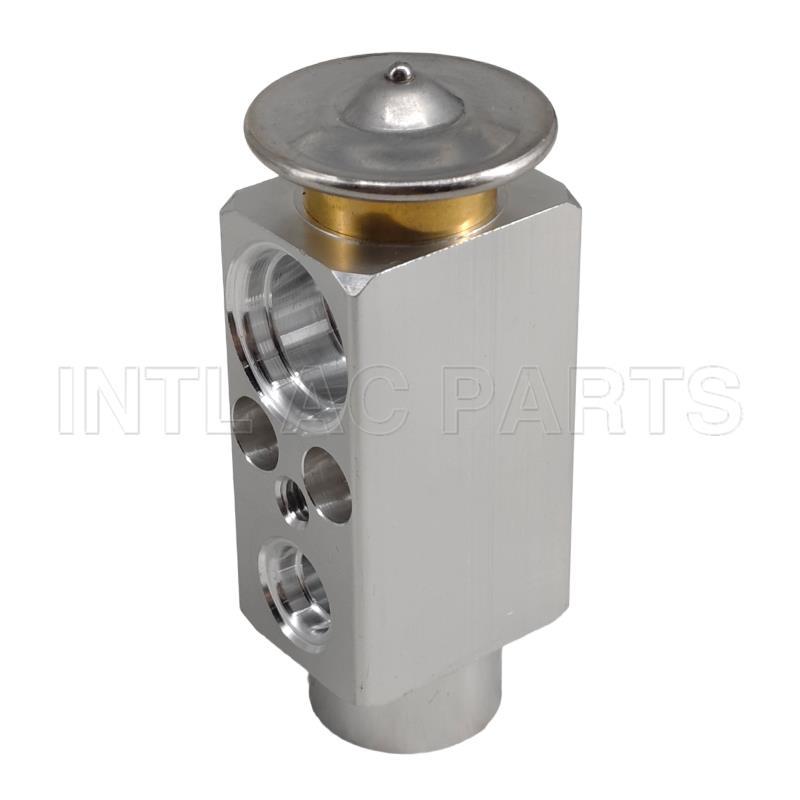

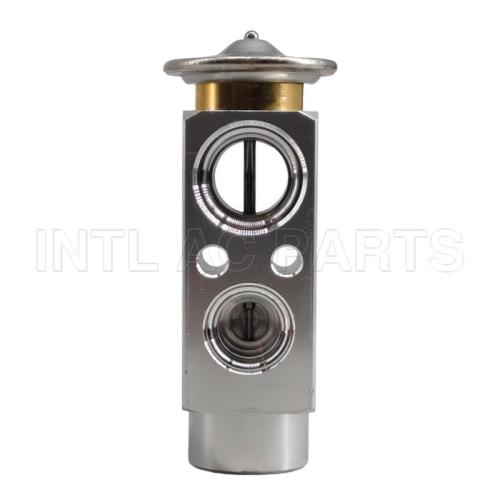

A/C Expansion Valve Mercedes-Benz W124 MB
Model No.: INTL-EH065
Vehicle: Mercedes-Benz MB
Car Model: Mercedes-Benz W124
Expansion valve for Mercedes-Benz W124
Function and How does Expansion valves work?
1. A thermostatic expansion valve is ametering device that monitors the amount of refrigerant that enters an A/C's evaporator. When an air conditioning unit switches on, the compressor transfers refrigerant in gas form to the condenser. The condenser switches the gas refrigerant into a liquid refrigerant. The liquid refrigerant leaves the receiver-drier and enters the expansion valve pressure switch.
2. Thermal expansion valve has a sensing bulb, which is connected to TXV by a length of capillary tubing. The capillary tube transmits sensing bulb pressures to the top of the TXV valve’s diaphragm.
3. AC expansion valves work by controlling the amount of refrigerant flows to the evaporator coils. It acts as restriction to provide a specific amount of refrigerant flows into the evaporator coils.
