GOODYEA Galaxy A10 air conditioning compressor hose
GOODYEA Galaxy A10 air conditioning compressor hose
GOODYEA Galaxy A10 air conditioning compressor hose
Model
INTL-H001

Item specifics

Type
A/C Installation,A/C Compressor & Clutch
Special Features
CAR AIR CONDITIONER
Material Type
RUBBER
Color Name:
BLACK

Review

Description

PRODUCT PROFILE






INTL MODEL:INTL-H001

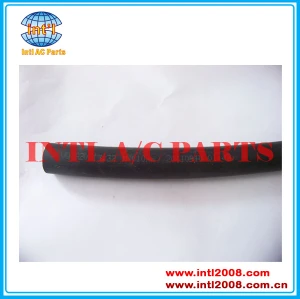

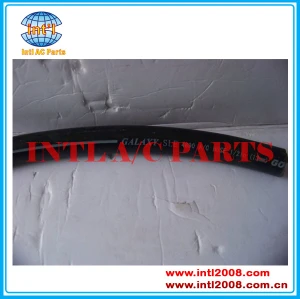

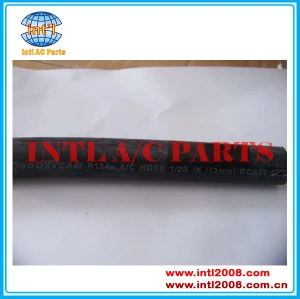

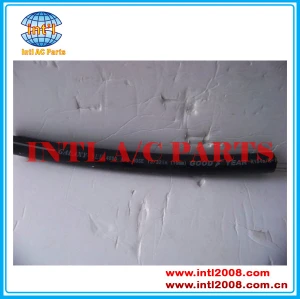

GOODYEA  Galaxy  A10 8mm air conditioning hose 8MM

INNER DIAMETER:8.2MM±0.3

OUTER DIMETER:15.2MM±0.4

SPECIFICATION:

SINGLE Polyester spiral barrier hose
J51 AII Outside Diameters
Temperature Range -22°F to 257° F (-30°C / 125°C)
Compatible with
R-12 / R134a refrigerants
Mineral oil / PAG's
Meets J2064 "TYPE C Class II" Hose Performance
Low Volumetric Expansion
Dimensionally Stable
Flexible -- Easy to Route

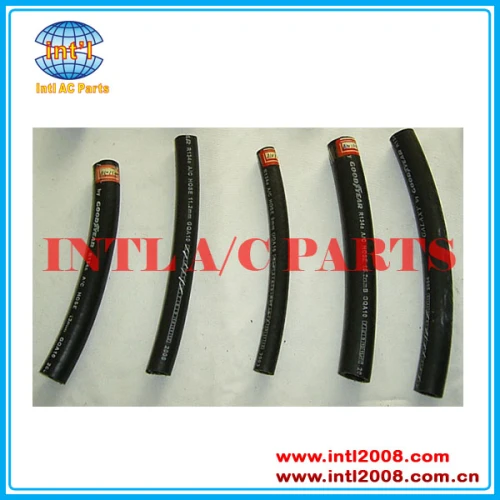

GOOD YEA A10 HOSE SIZE SPECIFICATION:

A10 MODEL       INNER DIAMETER OUTER DIAMETER
A10A-8MM8.2±0.315.2±0.4
A10A-11.211.4±0.418.4±0.4
A10-13MM13±0.421±0.5
A10-15.2B15.2±0.423±0.5



NORMALLY WE ACCOR TO 20METER/ROLL TO SEND GOODS,OF COURSE ALSO CAN ACCOR TO CUSTOMER  REQUIREMENTS TO CUT,IF YOU ORDER OTHER MODEL,BUT YOU CAN NOT FIND IN OUR WEBSITE, YOU CAN PLACE ORDER FIRST, THEN LEAVE MESSAGE TO US, AFTER WE GET YOUR MESSAGE,WE WILL ADJUST THE PRICE ACCOR TO YOUR MESSAGE WHAT YOU NEEDS,THEN YOU MAKE PAYMENT !

Packaging Details

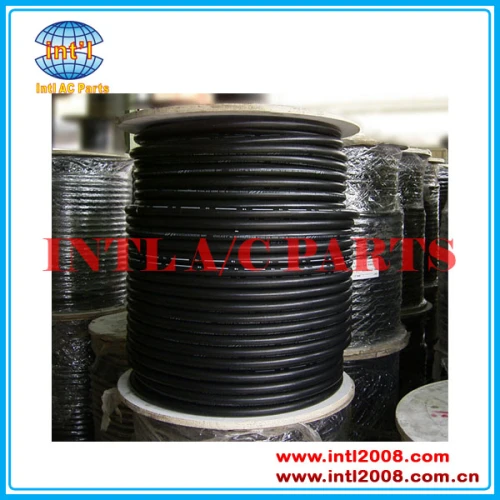

  • Unit Type: lot (20 Meter/lot)
  • Package Weight: 25.0kg (55.12lb.)
  • Package Size: 48cm x 46cm x 28cm (18.90in x 18.11in x 11.02in)
