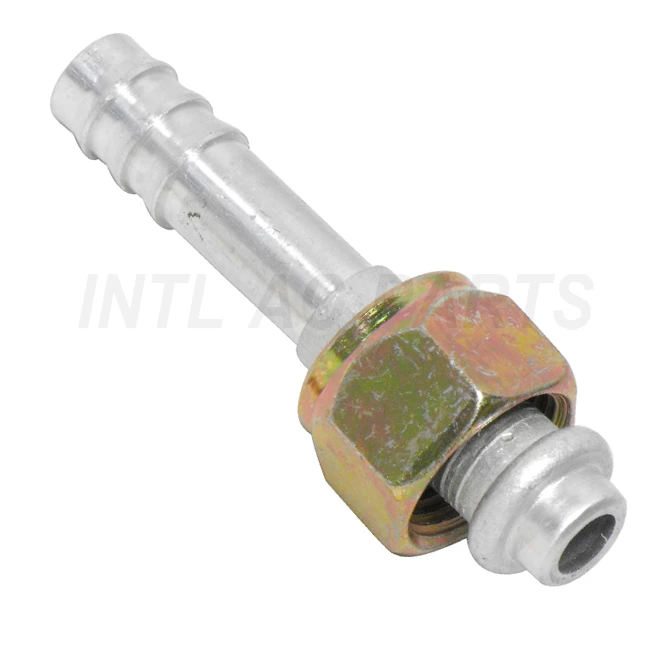

Universal Ac Hose Fitting Strd. F Oring w/o service port FT 1302C TEM206002
Universal Ac Hose Fitting Strd. F Oring w/o service port FT 1302C TEM206002
Model
INTL-HF2007

Item specifics

Material
aluminum
OE
FT 1302C TEM206002

Review

Description

PRODUCT PROFILE





INTL-HF2007

AC Delco: 15342
Atco: 1302
Compressor Works: 429192
Compressor Works: 710652
Compressor Works: 710656
Four Seasons: 12008
Four Seasons: 13908
Four Seasons: 2008
Global Air Inc.: FT1002
Global Cool Cars: 2230T0208
Global Parts Distributors: 1022018
NAPA: 206002
NAPA: 206002B
NAPA: TEM206002
NAPA: TEM206002B
Omega: 3511302
Oreilly Auto Parts: 12008
Panafrio: 20224
Ready-Aire/Proliance: 3026
Refrigeration Sales: 91526
TAAP: 135802
Trad Automotive: OTH1178
Uni-Motor: 12008
Visteon: 220132
UAC: FT 1302C

Fitting Size (in): 1/2
Fitting Type: Barb
Fitting Type: Strd. F Oring w/o service port
Hose Size : No. 8
Material: Aluminum
Thread Size (in): 3/4 - 16



Related Hose Fitting



Female O-ring R-134a Beadlock Fitting (ALU. JOINT+ALU. JACKET)
Part NO.SpecificationPart NO.Specification
INTL-HF5201#6/StraightINTL-HF5207#10/Straight
INTL-HF5202#6/45°INTL-HF5208#10/45°
INTL-HF5203#6/90°INTL-HF5209#10/90°
INTL-HF5204#8/StraightINTL-HF5210#12/Straight
INTL-HF5205#8/45°INTL-HF5211#12/45°
INTL-HF5206#8/90°INTL-HF5212#12/90°
Related Ferrules
.jpg



Standard Jacket
Part NO.SpecificationB= Rear Bore Diameter (MM)A= Inner Bore Diameter(MM)C=length (MM)
INTL-AJ8101#6-5/168.2±0.419±0.535
INTL-AJ8102#8-13/3210.5±0.423±0.533
INTL-AJ8103#10-1/2A13±0.523±0.833
INTL-AJ8104#10-1/2B13±0.525.4±0.833
INTL-AJ8105#12-5/816.1±0.528.6±0.833



 Reduced Jacket
Part NO.SpecificationB= Rear Bore Diameter (MM)A= Inner Bore Diameter(MM)C=length (MM)
INTL-AJ8106A1:#6-5/168.2±0.315.2±0.435
INTL-AJ8107A2:#8-13/3211.4±0.418.4±0.433
INTL-AJ8108A3:#10-1/213±0.421±0.533
INTL-AJ8109A4:#12-5/815.2±0.423±0.533
Related Hose


Goodyear Standard Hose
Part NO.SpecificationI.D(MM)O.D(MM)
INTL-H008A20-5/168.2±0.419±0.5
INTL-H009A20-13/3210.5±0.423±0.5
INTL-H010A20-1/2B/C13±0.523±0.8
INTL-H010AA20-1/2A13±0.525.4±0.8
INTL-H011A20-5/816.1±0.525.4±0.8
