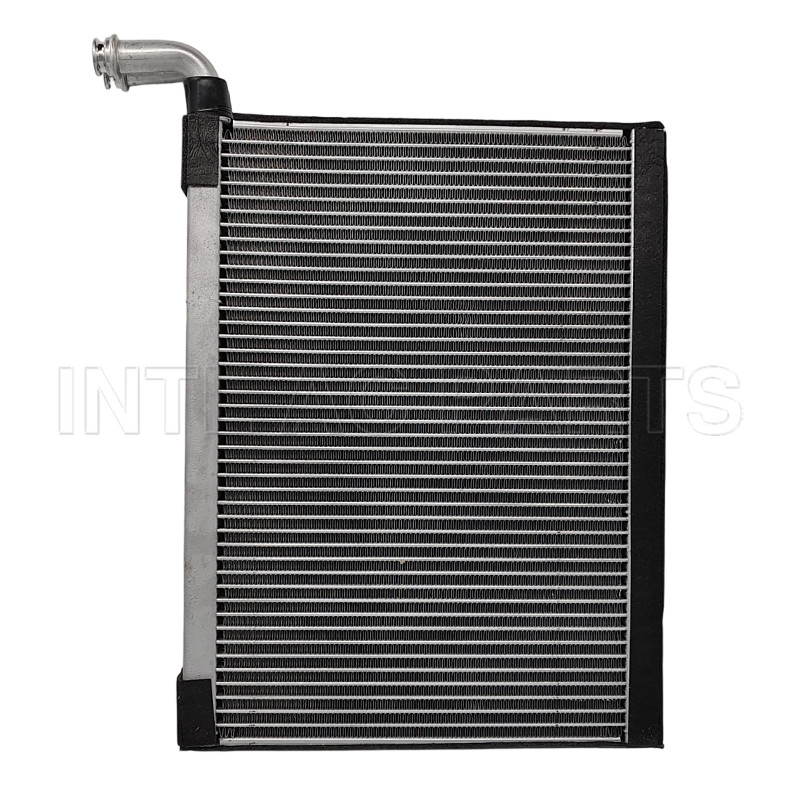

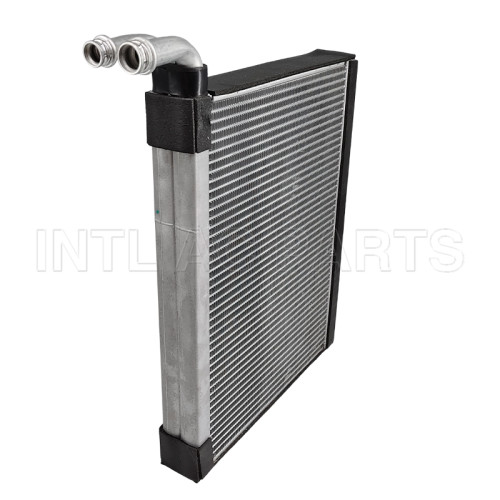

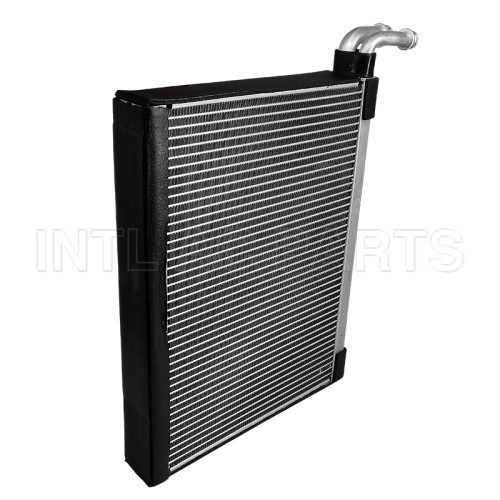

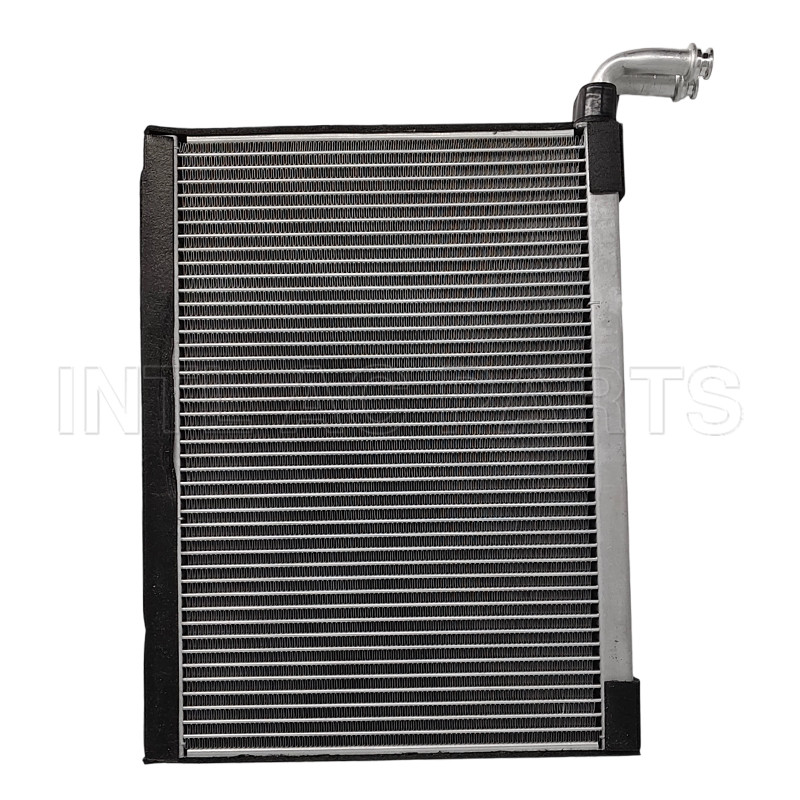

Auto ac evaporator FOR Caterpillar 312E 3639453 590-2520 SIZE 241x311x44MM

PRODUCT PROFILE

PRODUCT DESCRIPTION

Specification:

Model number: INTL-EV326

Material: Aluminum

Sizes:

241x311x44mm

OEM

AP Air Part Number:
590-2520
3639453

Part Specifications:
Valve Type: Block
Fitting Type: O-Ring
Core Length: 7 3/4", 197mm
Core Height: 12", 305mm
Core Width: 1 1/2", 38mm
Overall Length: 9 1/2", 241mm
Overall Height: 12 1/4", 311mm
Overall Width: 1 3/4", 44mm
Core Depth: 1 1/2", 38mm
Fitting Inlet: #10 Male O-Ring
Fitting Outlet: #12 Male O-Ring

AC evaporator
car evaporator
car ac evaporator
AC evaporator core
auto AC evaporator
car evaporator coil
