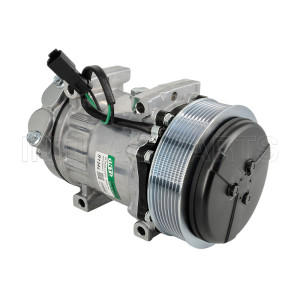

SD7H13 Auto Ac Compressor Sanden 7301, 7324

PRODUCT PROFILE

PRODUCT DESCRIPTION

INTL-C259

Sanden Model/s #: 7301, 7324, 197301

OEM SANDEN COMPRESSOR SD7H13 7301 2A 12V 125mm

HOR KG HEAD Rotor Size: 125

Rotor Groove: A2

Coil Voltage: 12

Compressor Family: SD7H13

Style: STD

Mount Type: Ear 8 Mid

Ear ID: 73.3

Refrigerant: R134A

Displacement: 129.20

Rotation Direction: CW

Oil Qty (cc): 135

Cylinder Head: KG

Port Angle: H

Port Clocking: Rear

Head Port Style: 3/4X7/8

Gauge Line to First Groove: 23.80

Gauge Line to Middle Groove: 0.00

Gauge Line to End Groove: 39.55

Connector: 1 Wire Male Bullet Cross Reference: 7301, 1101365, 20-07301
