PRODUCT PROFILE





INTL MODEL:INTL-XG053A

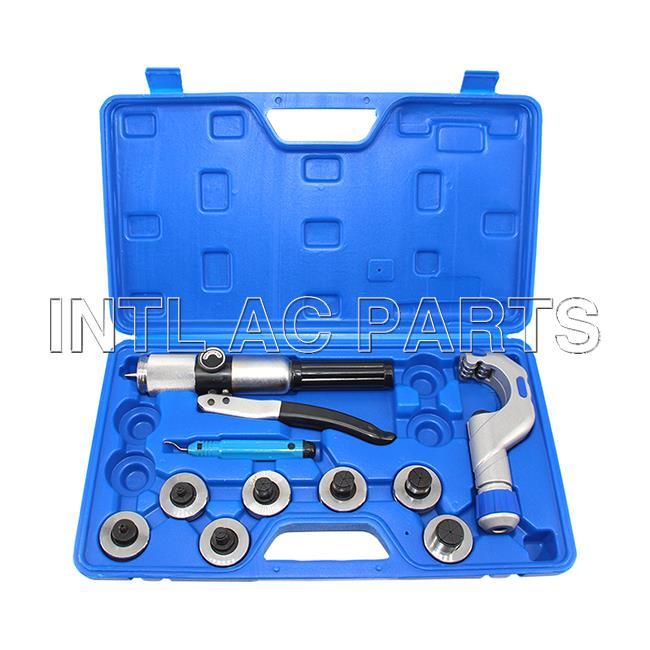

Hydraulic Tube expander
DX Model: CT-300
Manual hydraulic expansion tube design.
Can easily expand 10mm to 42mm diameter pipes.
Suitable for copper tube, aluminum tube, titanium tube, stainless steel tube and soft iron tube, etc.
Claws are made of high-quality hardened steel.
The specifications are as follows:
7 expansion heads:
CT-300M (Metric): 10mm, 12mm, 16mm, 19mm, 22mm, 25mm, 28mm;
CT-107: 3/16”~2”(5~50mm)+CT-207
Uses: Suitable for copper pipes, aluminum pipes, thin-walled stainless steel pipes and other hoses, expanding and expanding copper pipes, so that two copper pipes are connected to each other!
Six easy steps
1.de burr inside of tube.
2.anneal the tube if necessary(for hard or thick walltube).
3.screw the expander head on expander.
4.put the end of rube on expander head.
5.tighten the relief valve knob to ‘On' position then pump handle until tube is expanded to the end.
6.turn the relief valve knob to‘OFF’position to loosen expander head remove expanded tube.
Packaging: plastic box packaging
Gross net weight: 17/16KG
Quantity per carton: 4
Carton size: 42*27*21CM
