Hose End Ball-Valves 1/4" SAE Male Flare x 1/4" Swivel 45 (3-Pack)
Hose End Ball-Valves 1/4
Hose End Ball-Valves 1/4
Hose End Ball-Valves 1/4
Hose End Ball-Valves 1/4
Model
INTL-XG175

Item specifics

Car Model
universal
Type
tool
INTL No.
INTL-XG175

Review

Description

PRODUCT PROFILE





INTL-XG175

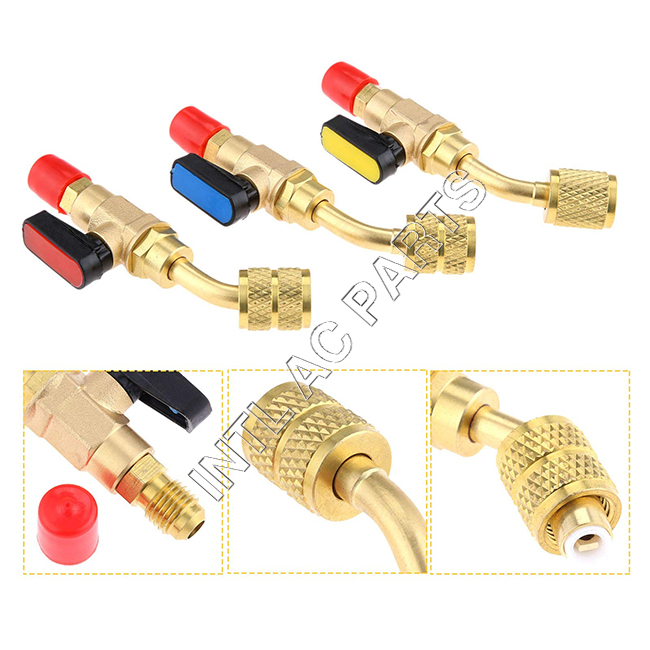

Hose End Ball-Valves 1/4" SAE Male Flare x 1/4" Swivel 45 (3-Pack)
Brass 45° Swivel Elbow x Male Full Flow Ball Valve, 1/4" SAE Female x 1/4" SAE Male.
Straight type adapter with ball valve
Connection:1/4SAE 5/16SAE 3/8SAE 1/2ACME
Application:R12/R22/R502/R134a/R404A/R407c/R410A
Color:Gold
Working pressure:800 psi working pressure, 4000psi burst pressure

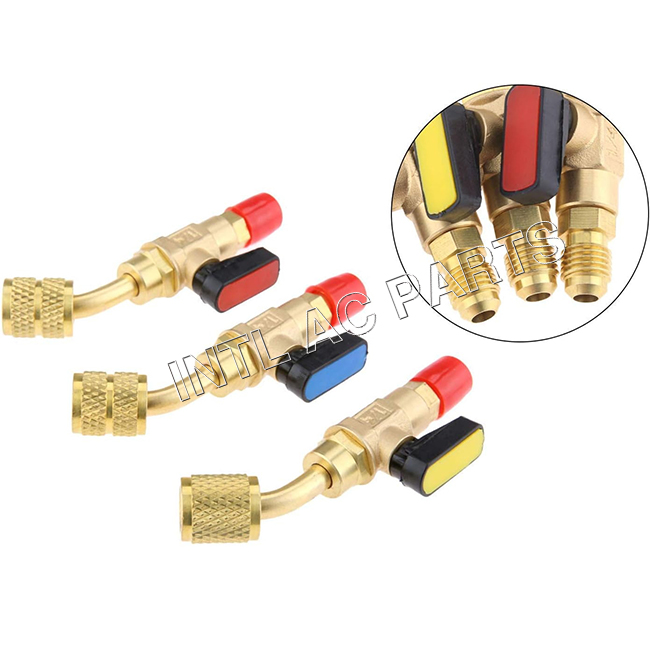

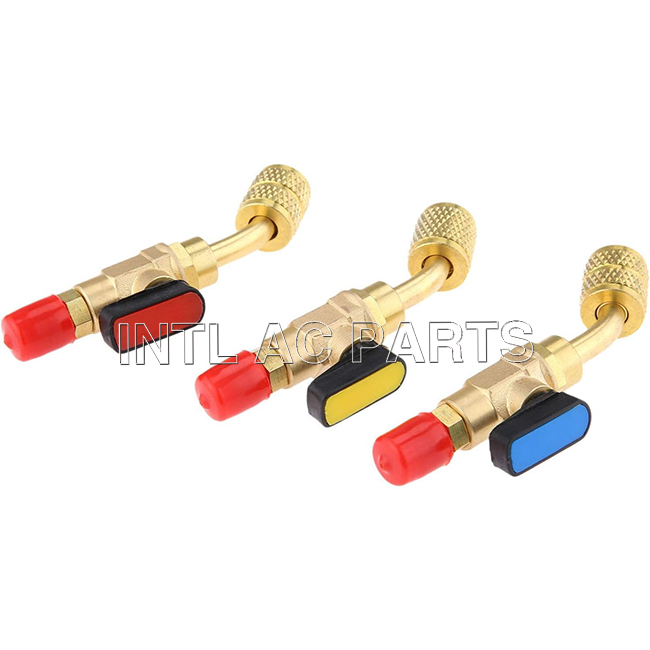

Brass valves are color coded on knobs 1-Red, 1-Blue & 1-Yellow:
1-Red: 1/4"Male SAE on one end and 5/16" Female SAE with valve core depressor on other end
1-Blue: 1/4" Male SAE on one end and 5/16" Female SAE with valve core depressor on other end
1-Yellow: 1/4" Male SAE on one end and 1/4" Female SAE with valve core depressor on other end
Product Features:
Add to existing hose to eliminate refrigerant loss and comply with EPA regulations
Easy 1/4 turn open/close with rugged plastic composite color-coded handles
Over-sized chrome ball for smooth operation and non-restrictive flow
Life Cycle Tested To 140,00 cycles open/close without a leak
Individual valves include all three color-coded handle inserts
Specifications:
Material: Brass
Color: Red/Blue/Yellow
Length: 73mm/2.87"
Diameter: Male: 1/4" (12mm); Female: 13mm (5/16")
Quantity: 3 Pc
