Our factory can produce many kinds of auto Air Conditioner Compressors with good quality and one year quality warrantee.

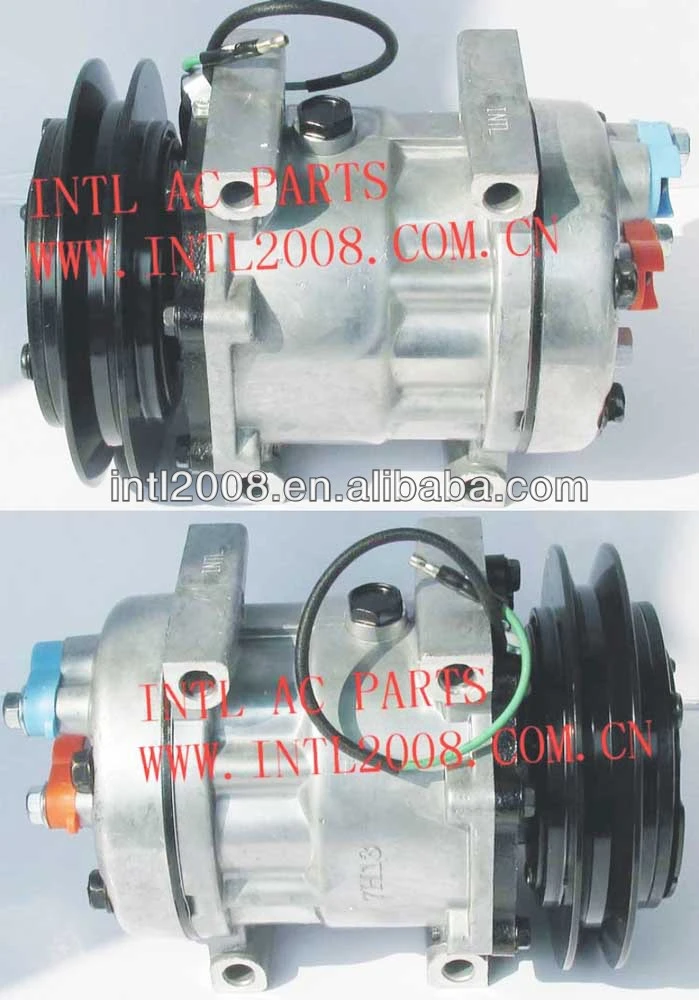

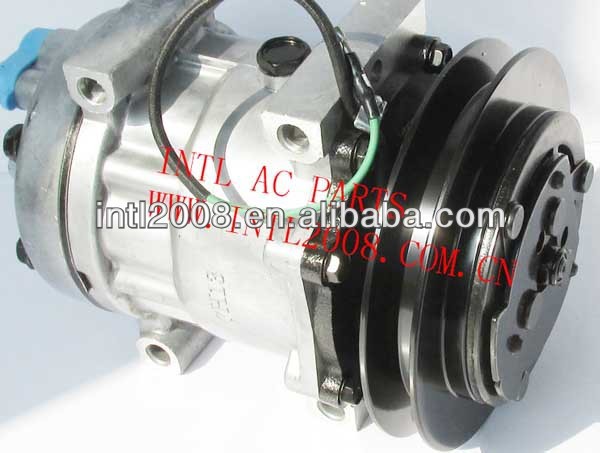

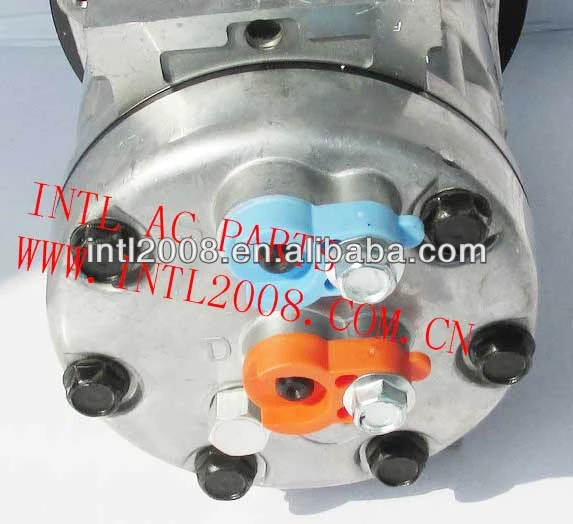

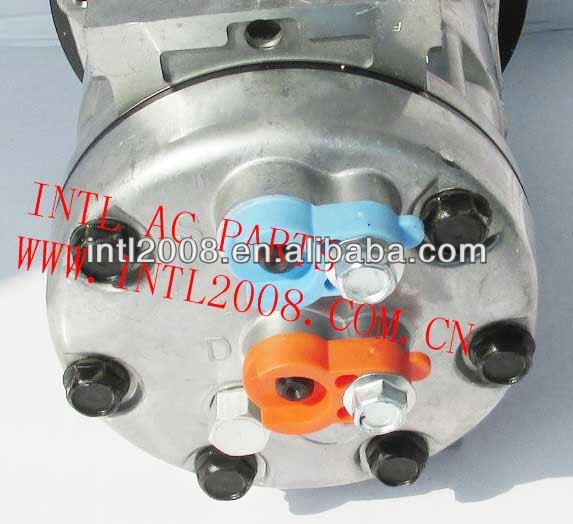

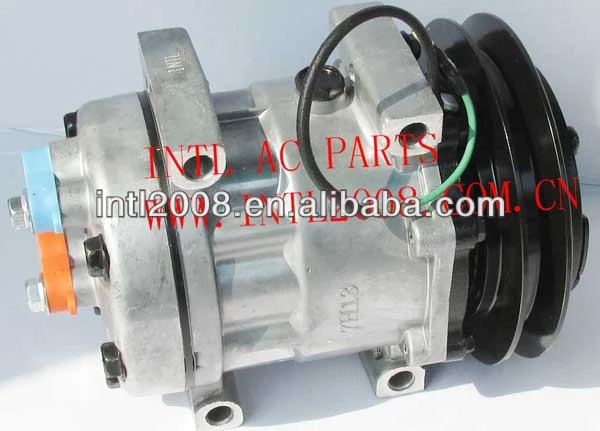

Sanden 7H13 SD7H13 Kobelco Case Serie Excavator compressor

Specification:

Model number: INTL-C151

Car name:  Kobelco Case

Type:  Sanden 7H13 SD7H13

Grooves: 1GB

Clutch DIA:146mm

Voltage: 24V

Special Notes:

Application for:

Case Serie CX

Case Construction Excavator Track CX 160

Case Construction Excavator Track CX 210

Case Construction Excavator Track CX 240

Case Construction Excavator Track CX 290

Case Construction Excavator Track CX 330

Basic Requirements when servicing an A/C system:

1, The Accumulator or Filter Drier should always be replaced when the Air Conditioning System is opened. For warranty Purposes buyer must show evidence of receiver/drier replacement. In some vehicles the drier comes attached to the condenser so it must replaced as well

2. A/C system must be clean and free of debris and contaminants. In most cases components can be flushed; however in some instances it may be necessary to replace the condenser or other items.

3. Orifice tube must be replaced; expansion valve must be inspected and replaced if dirty or defective.

4. Correct amount and type of oil must be used. Please refer to the OE manufacturer for this information.

5. Prior to refrigerant charging, full vacuum must be done for a minimum of 45 minutes. In humid climates or during cooler days, this time should be increased to effectively remove air and boil off moisture.

6. The Orifice Tube, if equipped, should always be replaced and the Expansion Valve, if equipped, should at least be inspected for proper operation if not replaced
